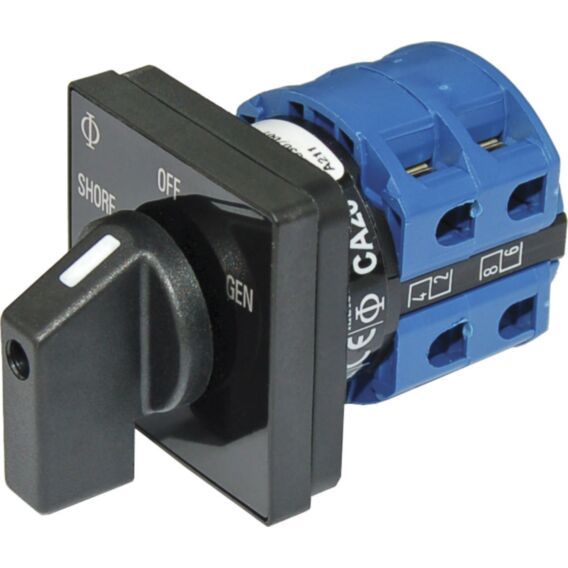

AC Rotary Switch - OFF + 2 Positions 120V AC 30A
SKU
BSS9009
- Switches 2 - 120 or 230 Volt AC sources
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two different AC sources to one circuit
- Mounts in panels up to 0.16" (4.00mm) thick
- Heavy-duty industrial rated switch
- Intuitive function - One hand operation
- UL listed
£189.64
RRP
Ex. VAT
| Specifications | |
|---|---|
| Positions | 2 + OFF |
| Source Selection | 2 |
| Nominal Voltage | 120V |
| Poles | 2 |
| Load Circuits Out | 1 |
| Maximum Amperage* | 30A |
| Maximum Voltage | 600V AC |
| Source In | 2 |
| Height | 1.89in (48.01 mm) |
| Width | 1.89in (48.01 mm) |
| Depth | 1.91in (48.51 mm) |
| Weight | 0.70lb (0.32 kg) |
*Maximum amperage ratings are dependent on the use of appropriately sized fuses and wire for a given application
