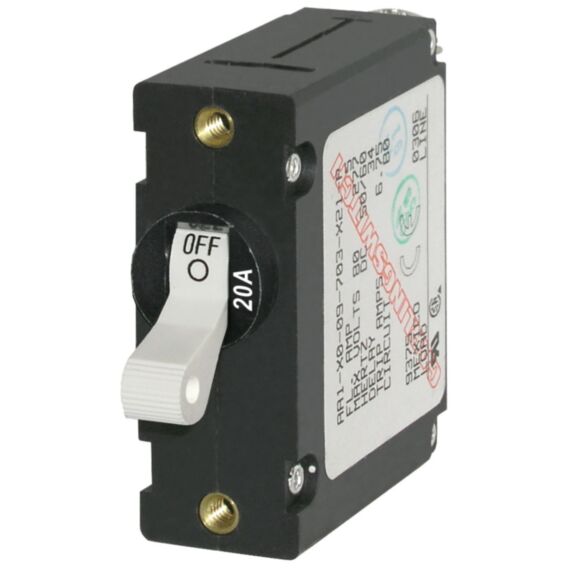

A-Series White Toggle Circuit Breaker - Single Pole 20A
Blue Sea Systems
SKU
BSS7214
- Meets American Boat and Yacht Council (ABYC) standards
- The industry standard circuit breaker for Blue Sea Systems' electrical panels
- Combines switching and circuit protection into a single device
- "Trip Free" design cannot be held "ON" during fault current condition
£21.76
RRP
Ex. VAT
| Specifications | |
|---|---|
| Amperage | 20A AC 20A DC |
| Color | White |
| Actuator Style | Toggle* |
| Poles | 1 |
| Maximum Voltage | 240V AC 65V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Interrupt Capacity** | 3000A @ 120V AC 1500A @ 240V AC [TUV] 3000A @ 240V AC [UL 1077] 7500A @ 65V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screws | #10-32 Stainless Steel |
| Weight | 0.17lb (0.08 kg) |
*An electric switch operated by means of a projecting lever that is moved up and down.
**The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage.
