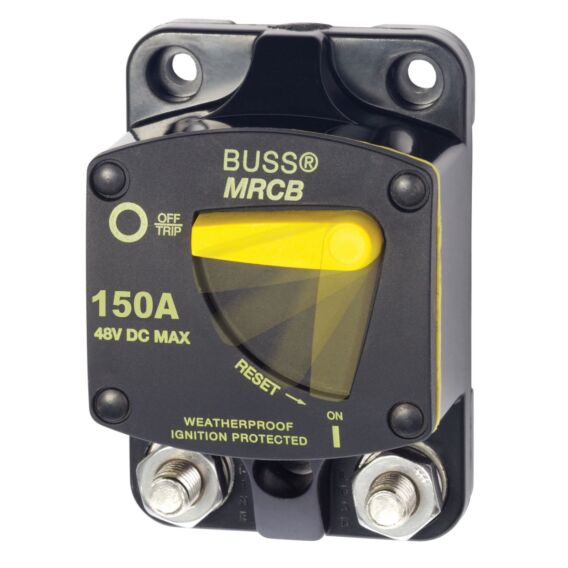

187-Series Circuit Breaker - Surface Mount 150A
SKU
BSS7148
- Combines switching and circuit protection into a single device*
- Clear, single lever operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Waterproof
- Recessed mounting holes for a clean appearance
- Large Clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 M8 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides an indication of trip status
- Ignition protected - safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- * Do not use as a switch where high inrush currents are expected.
£111.08
RRP
Ex. VAT
| Specifications | |
|---|---|
| Amperage | 150A |
| Maximum Voltage | 48V DC |
| Mounting | Surface Mount |
| Circuit Breaker Type | Thermally responsive Bi-metal blade |
| Terminal Stud Torque | 75 in-lb (8.47 Nm) |
| Interrupt Capacity* | 5000A @ 12V 3000A @ 24V 1500A @ 42V |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Case Material | Thermoset Polyester |
| Circuit Breaker Class | Type III - switchable/manual reset - trip free |
| Mounting Hole | Accept #10 (M5) Screw |
| Terminal Stud Size | 5/16" - 18 |
| Weight | 0.58Lb (0.26 Kg) |
| Weight | 0.58lb (0.26 kg) |
*The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage.
