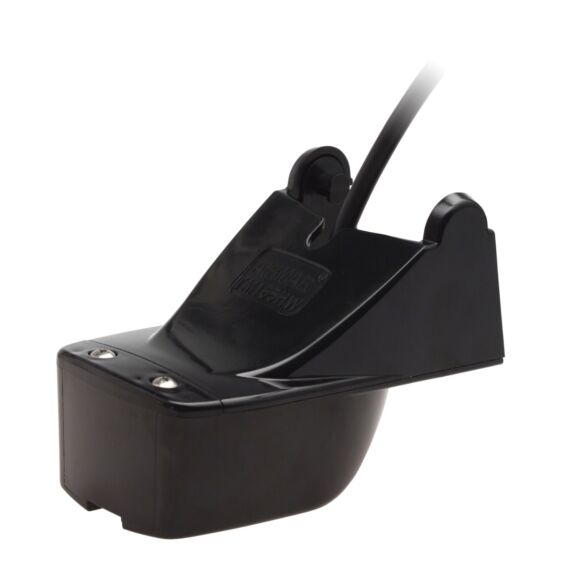

TM165HW Transom mount Wide Beam 150 - 250 kHz

SKU
TM165HW-12MM

Maximize the coverage under your boat and see what you’ve been missing. The new TM165HW features a high-frequency range of 150 to 250 kHz and a super-wide beamwidth, averaging 30°, providing maximum coverage across the frequency band. In addition to improving the performance of Chirp-capable fishfinders, anglers using this new wide-beam transducer will achieve three times the coverage compared to standard high-frequency Chirp-ready transducers.

Wide beamwidth, together with the high-frequency range, provides vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with narrow-beam transducers. Airmar’s new wide beam format also creates crisper and larger return images on the display.

Compatibility:

  • Lowrance - All units compatible except Hook series
  • Raymarine - All compatible
  • Simrad - All compatible
  • Garmin - GPSMAP 7600,8600,7X2/9X2/10x2/ 12x2, GSD26
  • Furuno: not until V4 software later in 2020
  • Humminbird - Helix and Solix can be set manually. SM3000 sets parameters dynamically using XiD
£646.90
RRP Ex. VAT
  • Depth and fast-response water-temperature sensor
  • 600 W with a maximum depth of 152 m (500’)
  • High frequency: 150 to 250 kHz
    • Super-wide 30° average beamwidth
  • 100 kHz of total bandwidth from one transducer
  • Covers a popular fishing frequency of 200 kHz plus everything else in the bandwidth
  • High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
  • High wide beamwidth yields more coverage for detecting fish in the upper-water column
  • Plastic release bracket protects sensor from frontal impact
  • Chemical and impact-resistant plastic housing
  • Recommended for planning hulls
  • Exclusive Xducer ID® technology
  • Patent Pending



Specifications

  • Weight: 0.5 kg (1.1 lb.)
  • Recommended Boat Length: Up to 8 m (25’)
  • Transom Angle: 2° to 22°
  • Acoustic Window: Layered plastic urethane (LPU)
  • Speed Range: Up to 44 knots (50 MPH)
  • Cable Length: 9 m (29')
