TM185H DT Transom mount chirp Wide Beam 150 - 250 kHz 1kw

SKU
41-915-1-01

Get more coverage under your boat with Airmar’s unique, wide-beam, high-frequency, Chirp-ready transducers. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam. This results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').

£1,516.17
RRP Ex. VAT
  • Depth and fast-response water-temperature sensor
  • 1 kW with a maximum depth of 152 m (500')
  • High frequency: 150 to 250 kHz
    • Constant 25° beamwidth
  • 100 kHz of total bandwidth from one transducer
  • Covers a popular fishing frequency of 200 kHz plus everything else in the bandwidth
  • High-frequency band yields excellent shallow to mid-depth performance, bottom detail, and fish-target separation
  • High wide beamwidth delivers more coverage for detecting fish in the upper-water column

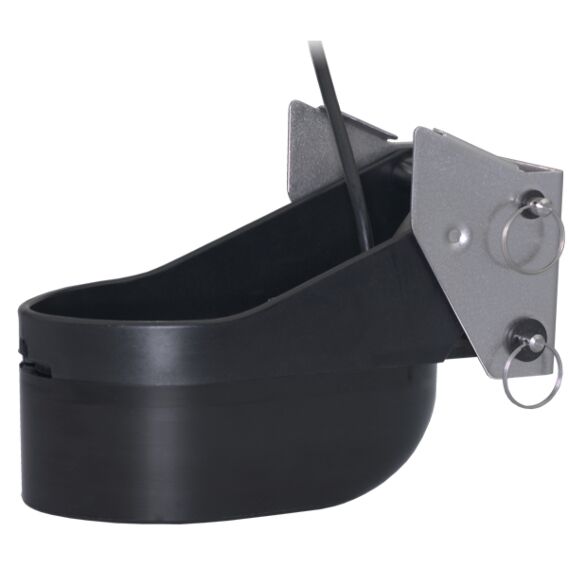

  • Urethane transom transducer
  • Stainless steel bracket for installation on outboard and I/O powered boats
  • Recommended for use on planing and displacement hulls
  • Exclusive Xducer ID® technology



Specifications

  • Weight: 4.2 kg (9.2 lb.)
  • Recommended Boat Length: Up to 10 m (32')
  • Transom Angle: 3° to 21°
  • Acoustic Window: Urethane
  • Includes: Adjustable, stainless steel bracket and mounting hardware
  • Transducer Element: One internal broadband ceramic assembly
