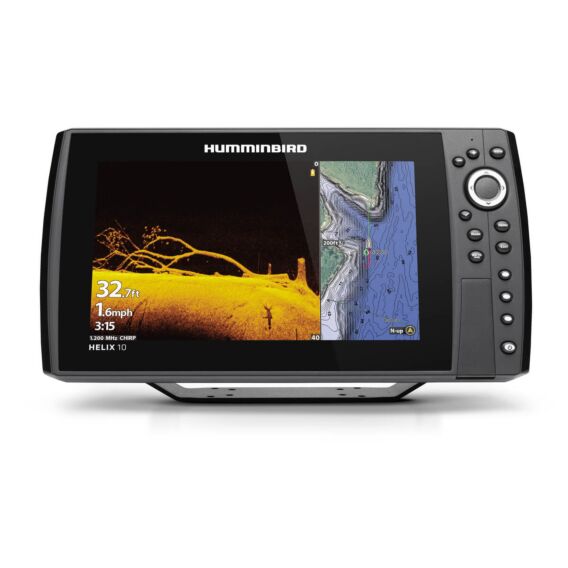

HELIX 10 CHIRP MEGA DI+ GPS G4N

SKU

411410-1

The HELIX 10 CHIRP MDI+ GPS G4N features a 10.1" display, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar and internal GPS with Humminbird Basemap. As with all HELIX G4N models, this HELIX 10 includes standard features such as AutoChart Live, Wi-Fi and NMEA 2000®, in addition to Bluetooth® and Ethernet networking for compatibility with the One-Boat Network™ family of products from Humminbird, Minn Kota and Cannon.

Please enquire with our sales team if wish to purchase the product without the transducer and transducer mounting bracket included.

£1,498.25

RRP Ex. VAT

Details

Downloads

Keypad control: Master HELIX at the touch of a button. Access the preloaded views from the user-friendly menu system, operated by soft key controls that allow you to reliably operate your fish finder in any conditions.
MEGA Down Imaging+: Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. You'll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.
Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
Internal GPS and Humminbird Basemap: Our enhanced base map provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
One-Boat Network Compatible: Many Humminbird models seamlessly integrate and communicate with Minn Kota motors and Cannon Optimum downriggers to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.
Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird FishSmart App and a display of smartphone notifications on your Humminbird.
NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.
Includes control head, screen cover, transom-mount transducer (if selected), power cable, gimbal mounting bracket and mounting hardware,
2-Year Limited Warranty

Item Number	411410-1
Series	HELIX
Display Size - Diagonal	10.1"
Display Pixel Matrix	1024H x 600V
Sonar-Standard	Dual Spectrum CHIRP, MEGA Down Imaging+
Sonar-Coverage	25°, 42°, 45°, 75° @ -10dB
Sonar-Optional	50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported	Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported	50/83/200/455/800 kHz & 1.2 MHz
Depth-Sonar	1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
CHIRP - Imaging-Frequencies Supported	455 kHz DI+ (435-535 kHz), 800 kHz DI+ (800-860 kHz), MEGA DI+ (1100-1200 kHz)
Depth-Down Imaging	125 ft (800 kHz), 200 ft (MEGA), 400 ft (455 kHz)
Interface	Keypad Control
Features	Bluetooth, Built-In GPS, Built-In Mapping, Down Imaging, Dual Spectrum CHIRP, MEGA Imaging+, Networking, Side Imaging, Wi-Fi
Memory Card Slot	Dual SD
Compatible With	AIS, AutoPilot, MEGA 360, MEGA Live, Minn Kota Built-In MEGA DI, Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, Minn Kota US2 Sonar, NMEA 2000, One-Boat Network, Radar
Power Draw	2.7 Amps
Power Input	10.8-20 VDC
Power Output Peak-to-Peak	8000 Watts
Power Output RMS	1000 Watts
Screen SnapShot	Included
Sonar Recording	Included
Mount-Standard	Gimbal
Mount-Standard Size	13.44" W x 7.5" H x 4.2" D
Mount-Optional Size	13.44" W x 7.12" H x 1.32" D
Transducer Mount Location	Transom
GPS Chartplotting	Included
GPS Trackplotting	Included
LakeMaster Compatibility	Yes
Coast Master Compatibility	Yes
Navionics Gold/HotMaps Compatibility	Yes
Navionics Platinum + Compatibility	Yes
Platinum Compatibility	Yes
Heading Sensor GPS Compatibility	Yes
Upgradable Software	Yes
View Preset Keys	Yes
X-Press Menu System	Yes
Custom Digital Readout	Yes
Custom View Selections	Yes
Display Colors Grayscale	16-Bit
Display Size	8" - 10"
Speed	Included
Temperature	Built-In
Temperature Alarm	Yes
Temperature Graph	Yes
Transducer	XM 9 HW MDI T
HDMI Compatible	No
MEGA Live Compatibility	Yes
