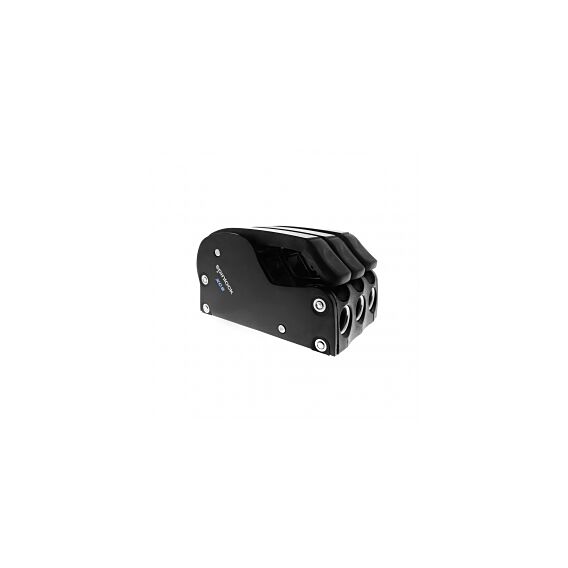

Triple XCS Rope Clutch 8-14mm Black


Triple XCS Rope Clutch 8-14mm Black

  • Aluminium sides for sustained higher load operation
  • Choose XCS when the mounting location requires extra durability, such as mast mounting, when matching surface finishes for aesthetics
  • Mid to higher load rope holding
  • Reliable all around performance
  • Available in white coated, black anodised or silver polished alloy
  • XCS0814 for best performance across the rope range
  • Extruded alloy handle with soft end grip
  • Secure handle locking in open and closed position
  • Easy access to fasteners
  • Handle labels supplied

Lines: 8mm - 14mm (5/16" - 9/16")
Loads up to 1000kg (2200lbs)

1610g (56.4oz)

Fastener: 6 x M8 (5/16") CSK Head (not supplied)

Spinlock XTS & XCS clutch installation & use instructions

XCS triple drill template
