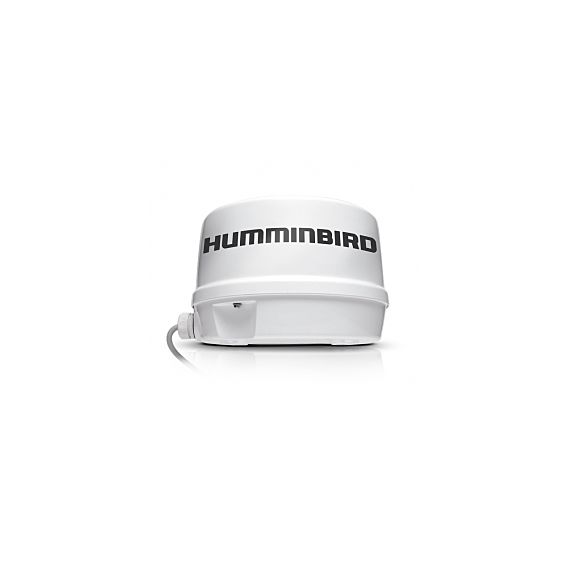

Rugged, 12-inch radome

Rugged, 12-inch radome easily connect to your Humminbird® Ethernet Network Up to 2kW transmit power delivers accurate target detection. Adjustable VRM and EBL functions provide precise range and bearing information for any target.Shaded target intensity helps users judge weather severity and differentiate between large and small vessels.

ANTENNA DIMENSION: 4Ft Array
PEAK POWER OUTPUT: 4kW
TRANSMIT FREQUENCY: 9410 ± 30MHz
BEAM WIDTH: 1.7° Horizontal, 25° Vertical
SIDE LOBES: Better than -23db
ROTATION: 24 rpm
