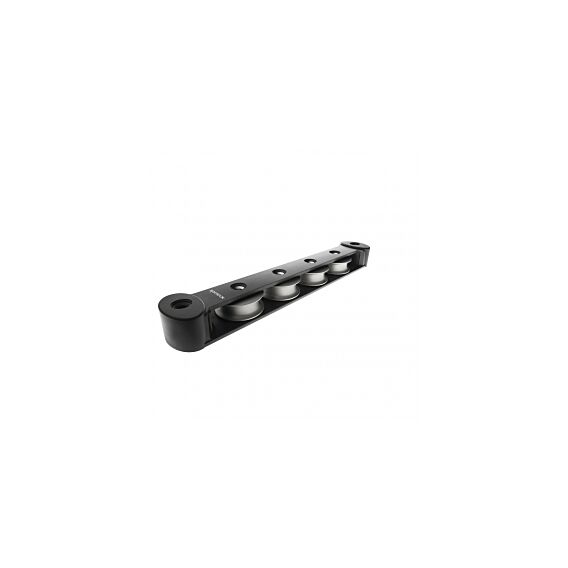

High Load Deck Organiser (40'+)
T-Series organisers lead multiple lines back from the mast to banks of powerclutches.
TC50 organisers are specially developed for higher loads
Minimal overall length
Efficient bearings surface reduces winch effort and increases halyard life
Integral end fairings for safe side loading
Double stack versions available
Can be used as an Aft Organiser to divert lines from a clutch to a winch
Sheave Diameter / Type
TC50 - 50mm (2") alloy
SWL per sheave
TC50 - 1500kg (3300lbs)
Total SWL per unit
TC50 - Number of sheaves x 750kg (1650lbs)
Line Diameter
TC50 - Up to 14mm (9/16")
Weight-
TC50 - 575g (20.1oz) for a 2 sheave organiser
add 130g (4.6oz) per extra sheave
Fasteners- TC50 - M8 (5/16") CSK Supplied
